YUSHAN OUTDOOR YT-DC Baitcasting Reel | DC Intelligent Brake, Brass Gears, Ceramic Outlet, 186g, Casts from 2g, Left/Right Hand
YUSHAN OUTDOOR YT-DC Baitcasting Reel | DC Intelligent Brake, Brass Gears, Ceramic Outlet, 186g, Casts from 2g, Left/Right Hand
DIOADELLAI YT-DC – DC Intelligent Brake. Brass Gears. Large Elliptical Ceramic Outlet.
The YT-DC from DIOADELLAI is a feature-rich DC electronic brake baitcasting reel in a striking black and purple colourway. Brass main gear and brass pinion ensure exceptional gear durability, while the Hall sensor DC brake chip delivers real-time intelligent brake force adjustment — automatically eliminating backlash the instant spool speed exceeds safe limits. The forward-positioned large elliptical ceramic line outlet sets it apart, reducing line resistance and backlash probability far beyond a standard round outlet.
Key Features

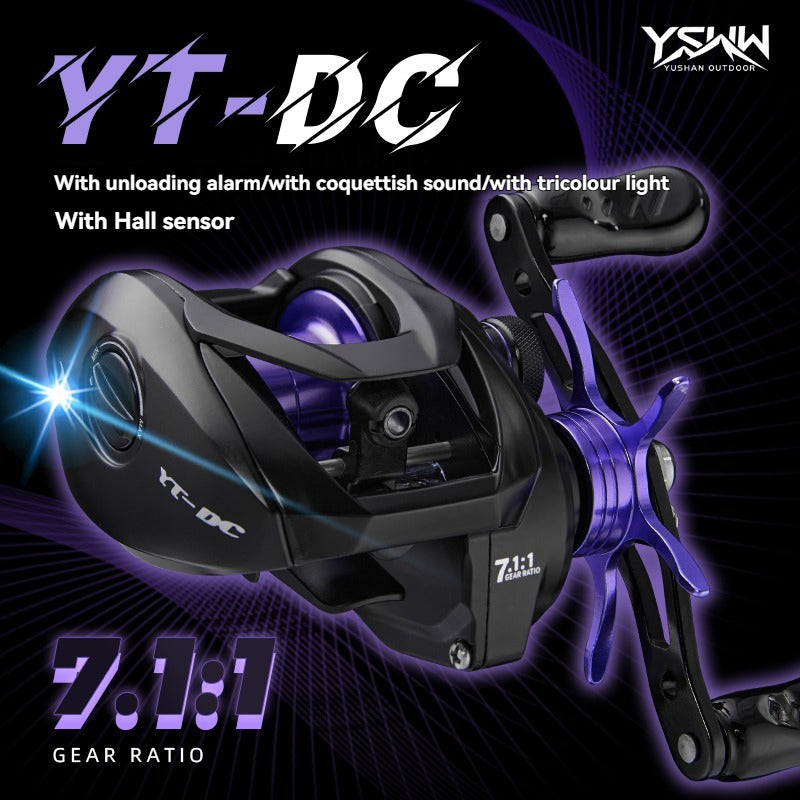

- DC Intelligent Electronic Brake System – Hall Sensor Chip – High-precision electromagnetic DC brake. Intelligent electronic brake system instantly adjusts brake force the moment casting begins — eliminating line explosion (backlash) caused by excess spool speed. Hall sensor detects real-time spool RPM and applies precise, automatic brake correction on every cast
- Brass Main Gear + Brass Pinion – Stable & Strong – Both the large and small gears are brass construction; ensures overall reel durability that far exceeds expectations. Brass gears resist wear and deliver smooth, consistent power transfer under load

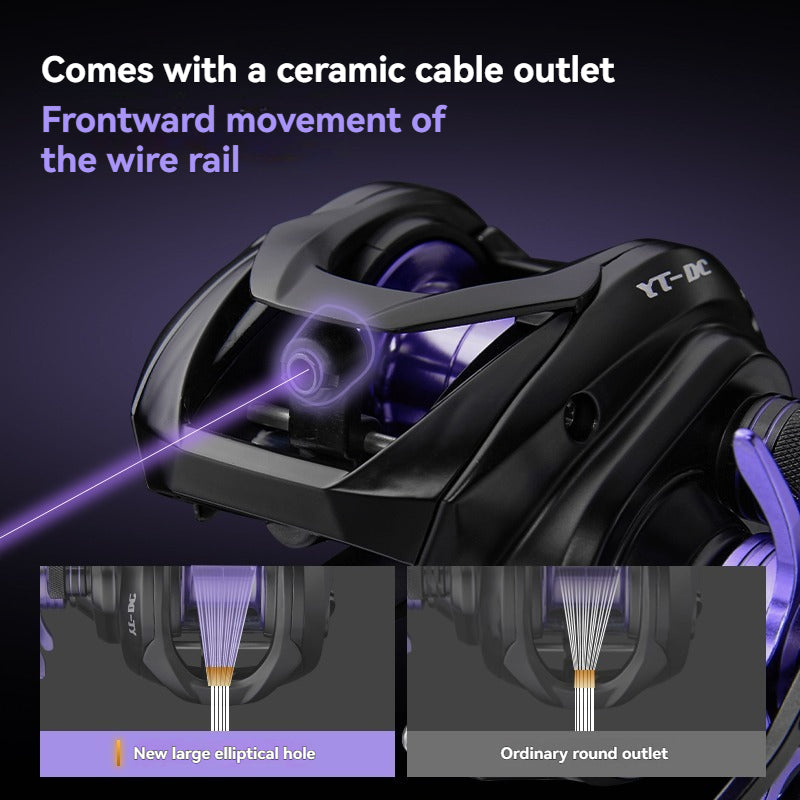

- Forward-Positioned Line Guide + Large Elliptical Ceramic Line Outlet – Line guide rail shifted forward for reduced resistance. New large elliptical outlet hole (vs. standard round outlet) significantly reduces line contact friction and backlash probability — easy control, no line explosion, lets you fish effortlessly. Ceramic material for smooth, durable line flow
- Modified Metal Star Drag Wrench (改装金属星型扳手) – Precision-crafted metal star drag wrench for single-hand drag adjustment; durable, precise, and tactile

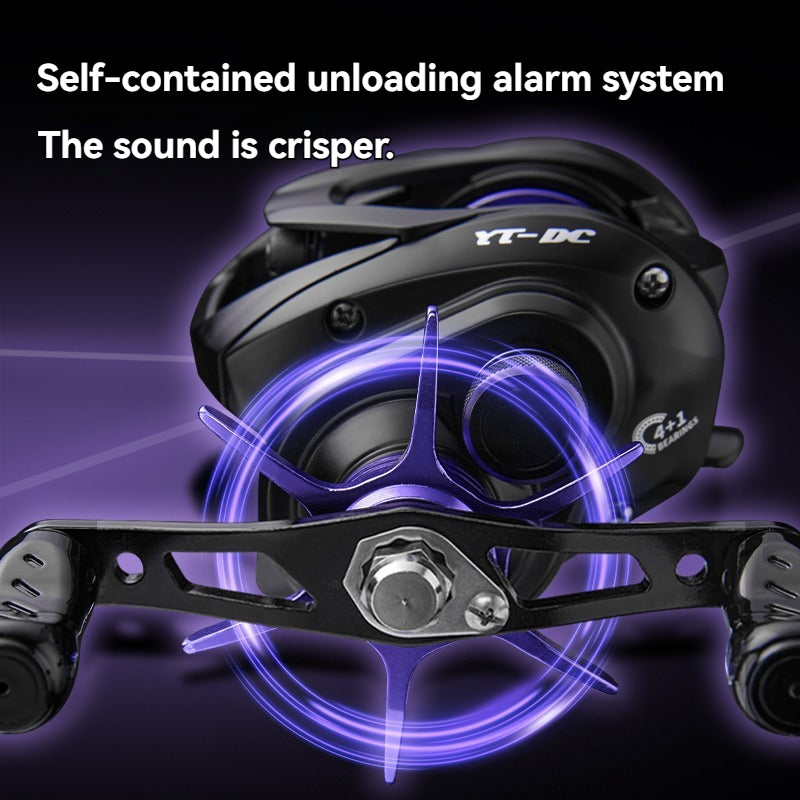

- Built-In Drag Alarm System – Crisp Metallic Sound – Equipped with a crisp built-in drag alarm device; metallic-feel sound quality delivers full emotional value and instant fish-run feedback on every hook-up. 7.1:1 high-speed retrieve for fast line recovery
Product Dimensions
| Dimension | Value |
|---|---|
| Total Length | 103mm |
| Total Height | 100mm |
| Body Width | 76mm |
| Body Height (low profile) | 40mm |

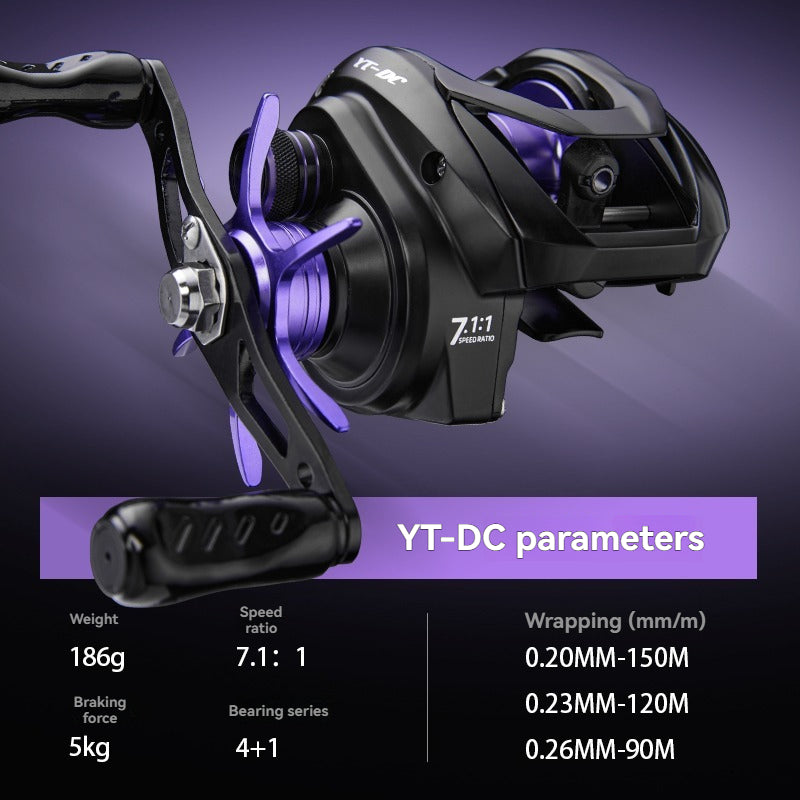

Specifications
| Parameter | Spec |
|---|---|
| Brand | DIOADELLAI |
| Model | YT-DC |
| Spool Material | Aluminium Alloy (铝合金) |
| Main Gear | Brass (黄铜) |
| Pinion Gear | Brass (黄铜) |
| Brake System | DC Intelligent Electronic Brake (Hall Sensor Chip) |
| Star Drag | Modified Metal Star Drag Wrench |
| Drag Alarm | Built-in (自带卸力报警) |
| Bearings | 4+1 |
| Weight | 186g |
| Gear Ratio | 7.1:1 |
| Max Drag | 5kg |
| Min. Cast Weight | 2g |
| Line Capacity | 0.20mm – 150m | 0.23mm – 120m | 0.26mm – 90m |
| Color | Black & Purple |
| Handedness | Right Hand (YT-DC) / Left Hand |
Note: All measurements are manual and may have slight variance — actual product is the reference.
